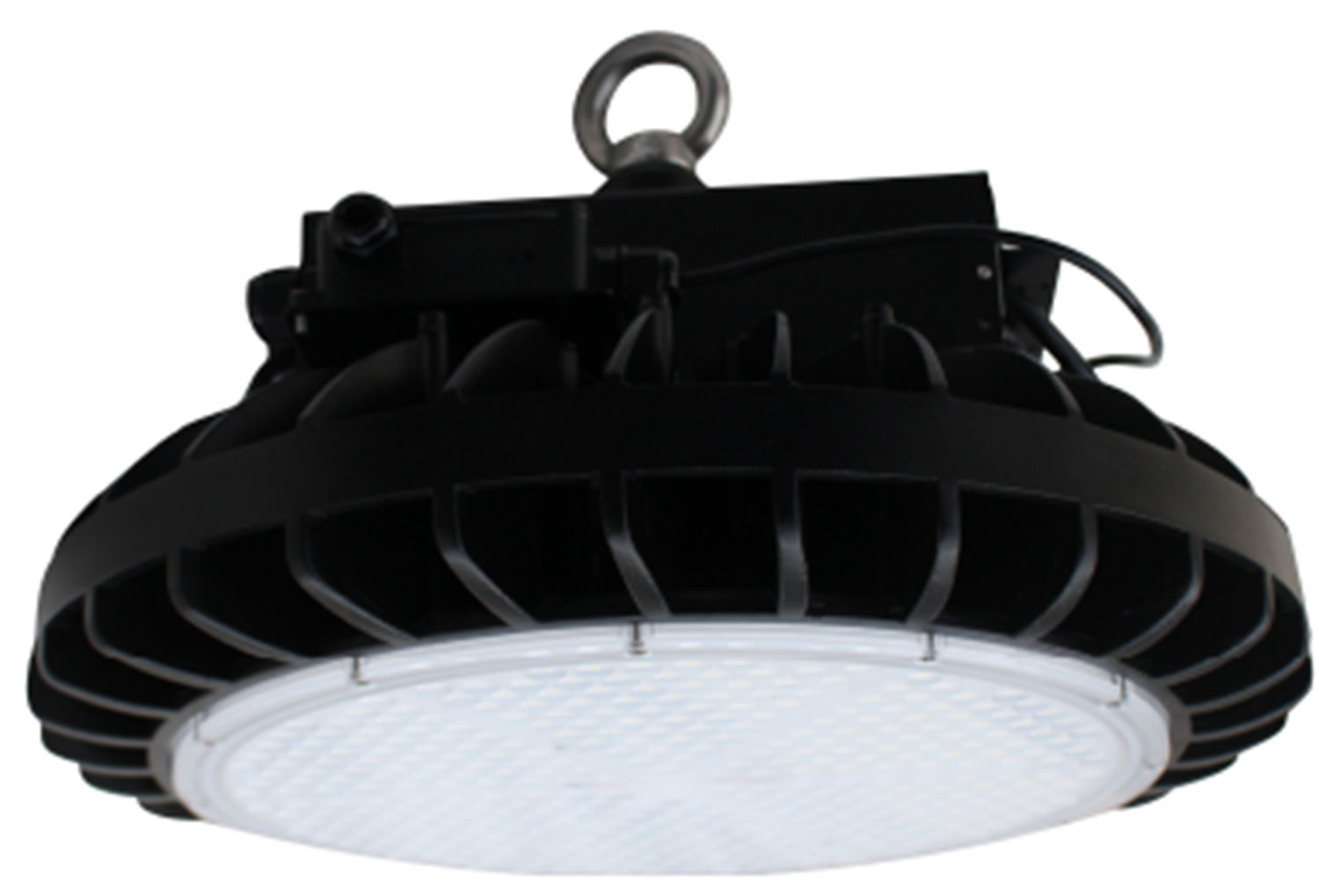

UHB-300-CW-480V

:: Housing: ACD12 aluminum heat sink, SUS black plate. outdoor powder coating
:: Optical Lens: High-transmiance PC, anti-UV and fire-resistant
:: Voltage: 120~277V; 60Hz AC
:: LED: LumiLEDs
:: Efficacy: 150LM/W
:: CRI: >80
:: Power Factor: ≤0.9
:: Beam Angle: 90°
:: THD: <20%
:: 0~10V Dimming
:: Operating Temperature: -4oF to 122oF
:: Aluminum LED Board: High conductive, waterproof, aging resistance, salt mist resistance, long-life
:: The human body induction function (adapter sold separately)
:: 7-year warranty
