SPEC SHEET

ULR-IN-16F-SO-50K

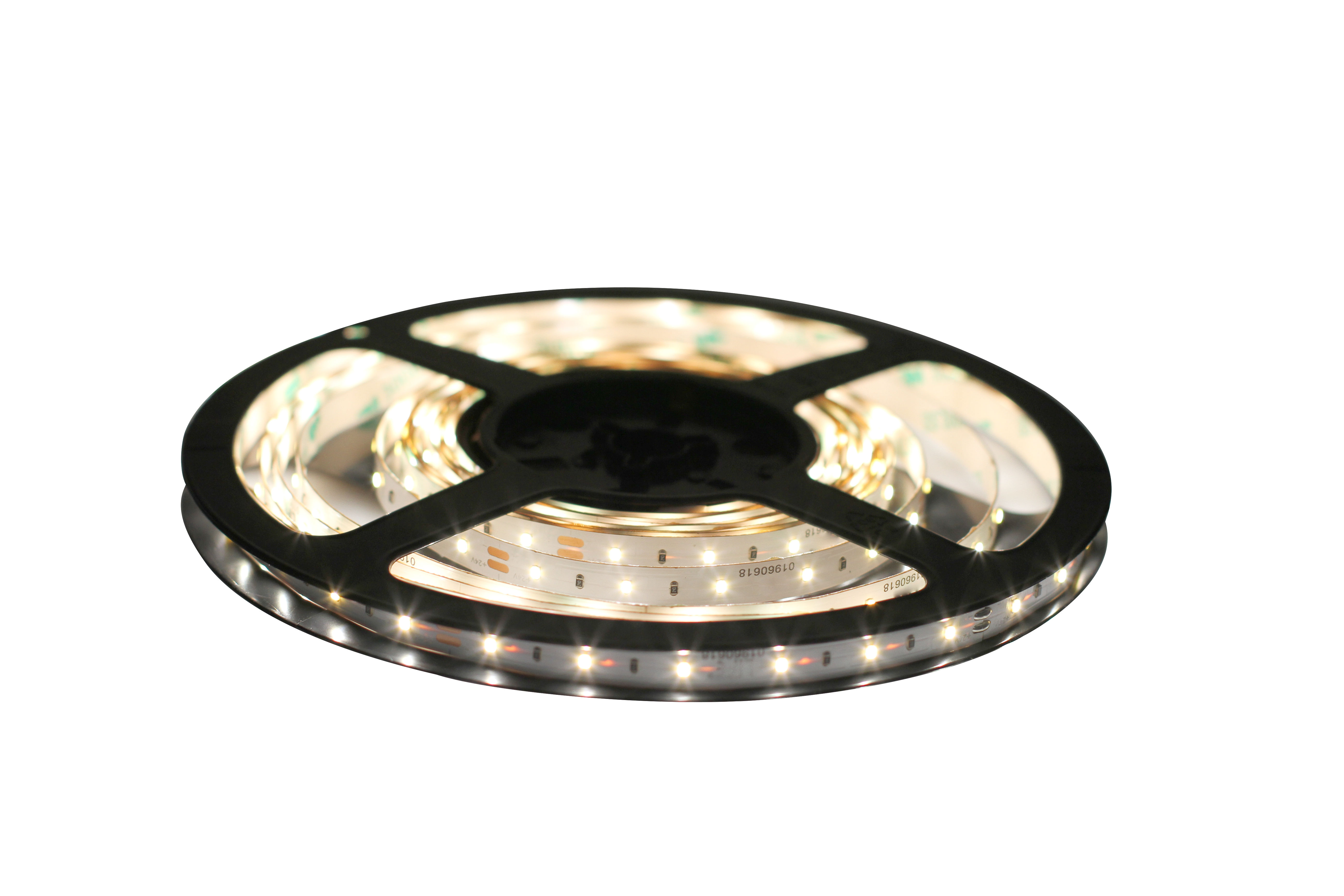

UL-Listed 24V Indoor Standard Output LED Ribbon

Technical Specs

  • :: LED: SMD2216 chip spaced 5/8" on center, 19 per foot, 0.08 watts each chip
  • :: Dimmable using a magnetic driver
  • :: Cutting increment: Every 4 inches
  • :: Working voltage: 24V DC (LED driver required)
  • :: Power: 1.5 watts per foot
  • :: Lumens: 100 lumens per foot, 4.73 LM per LED
  • :: CRI: 90
  • :: Max run: 32'
  • :: 120° beam angle
  • :: 3M double sided tape is preinstalled
  • :: Includes 1 female ribbon-to-power supply connector (Prewired) and 1 male plug for connection to next ribbon (Prewired)
  • :: IP20
  • :: 5-year warranty

Applications

  • :: Ideal for undercabinet, soffit, display cases and toe kick lighting.

Features

  • UL Listed
  • Indoor IP20
  • 5 year warranty
