FINAL PRODUCTION - ITEM BEING REPLACED
WA-4FT-30W-35K-D

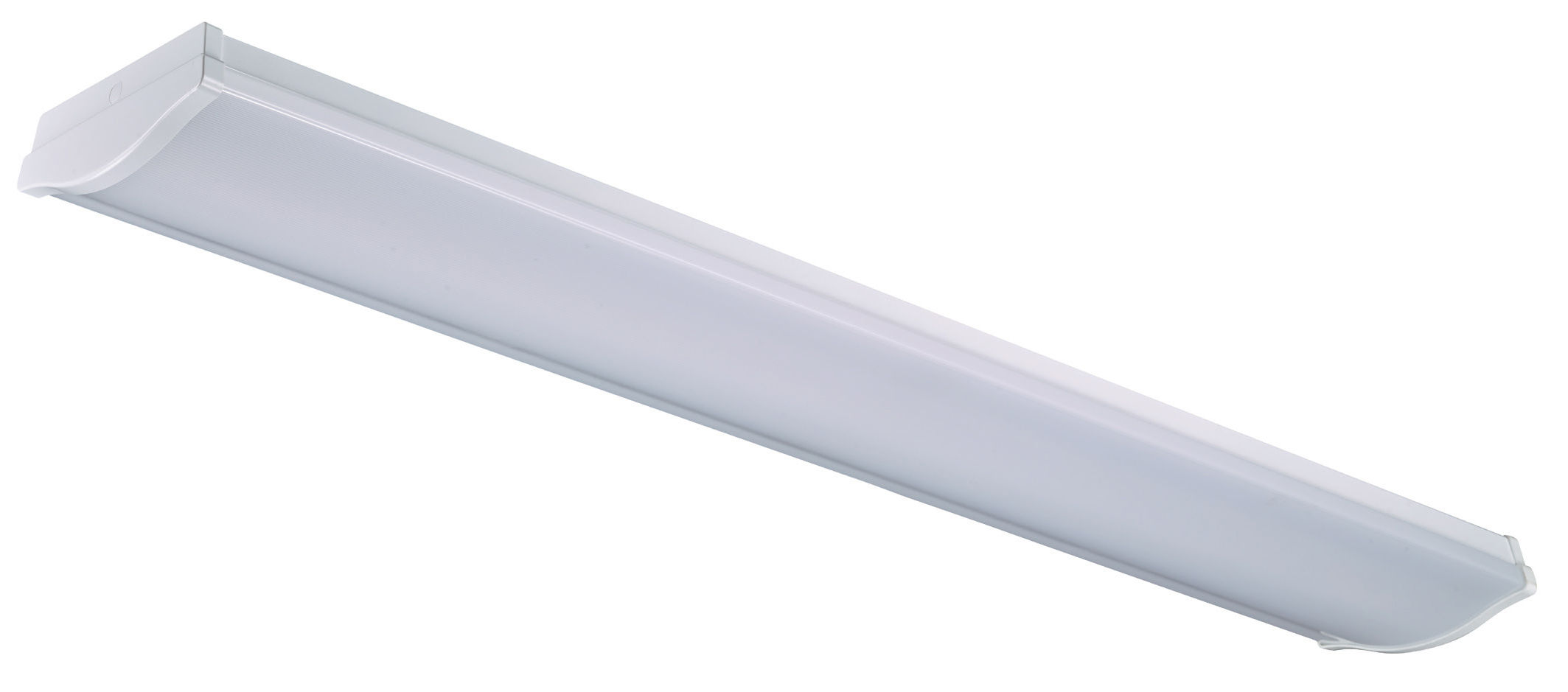

LED Architectural Wrap-Around Lights, 30W, 3500K
Technical Specs
- :: Housing: Die-formed heavy gauge cold rolled steel with powder coated white
- :: Steel Thickness: 24 Gauge
- :: Lens: Opal Polycarbonate
- :: Light Source: High-lumen LEDs
- :: Wattage: 30W and 25W
- :: Voltage: 100V-277V AC
- :: CRI: >82
- :: Driver: Optional
- :: Power Factor: >0.95
- :: Installation: Ceiling-mounted
- :: Ambient Temperature: -22ºF ~ +107ºF
- :: Color Temperature: 4000K and 5000K
- :: Efficacy: 110 LM/W
- :: Life Span: 50,000 hours, 5-year warranty
Applications
- :: Ideal for corridors, stairwells, public rooms, schools, hospitals, and utility areas.
