SPEC SHEET

WLL-181-RGBWW-BT-ORB

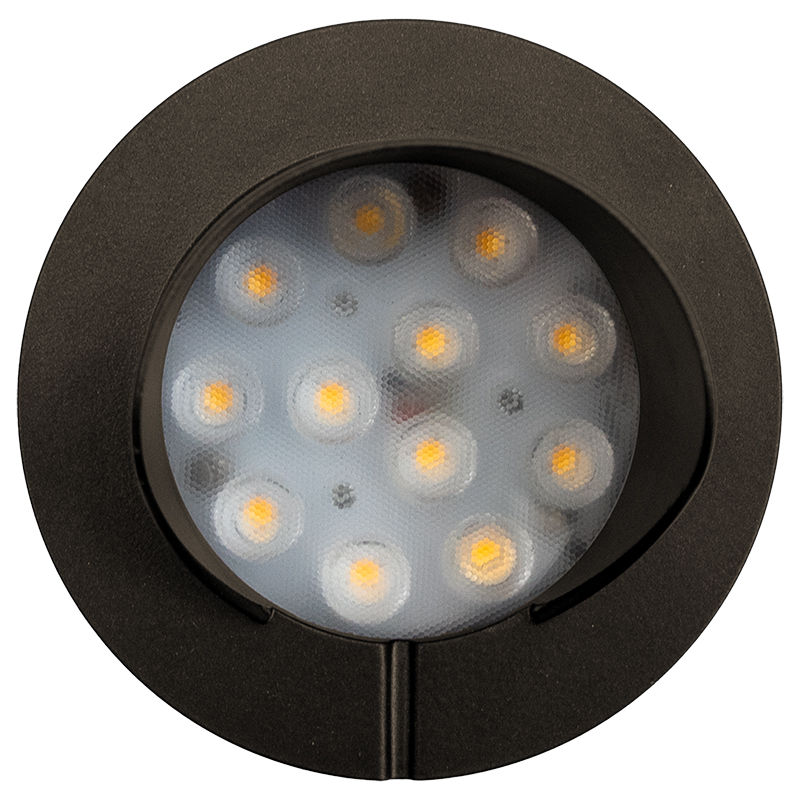

RGBW Integrated LED Well Lights, 6W

Technical Specs

  • :: Voltage: 12-24V AC/DC
  • :: Power Factor: >0.9
  • :: Wattage: 6W
  • :: Input current: 1A Max
  • :: Efficacy: 96LPW
  • :: Bluetooth Connection Range: Approximately 30 feet(10 meters). Maximum Communication Range Will Vary Depending On Obstacles (Person, Metal, Wall, etc.) Or Electromagnetic Environment.
  • :: Dimming: Dimmable Through Phone App
  • :: LED: Built in integrated LED
  • :: Total lumens: 580LM
  • :: Color Temperatures: RGBW Selectable Through Phone App
  • :: Color Rendering Index: CRI ≥ 90
  • :: Beam Angle: 52°
  • :: Lifespan: 50,000 Hrs.
  • :: This Fixture is Bluetooth mesh Enabled. Bluetooth Mesh Networking Enables Many-to-many (m:m) Device Communications And is Optimized For Creating Large-Scale Device Networks. It Is Ideally Suited For Control Monitoring And Automation Solutions That Require Tens, Hundreds or Thousands Of Devices To Communicate With One Another

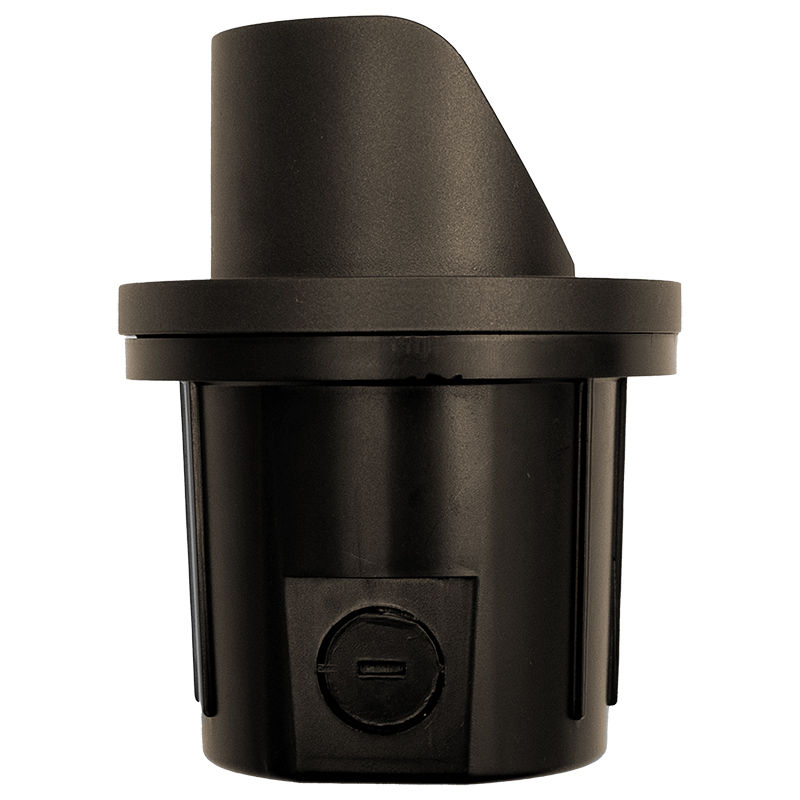

  • :: Die-cast Aluminum Housing
  • :: Traffic Rated: They are not likely to get damaged from activity around the light, including lawn care

Applications

  • :: The fixture has classic traditional appearance, professional light distribution design, ideal for park landscaping, garden, architectural landscape lighting, suitable for wet locations

Features

  • Wet Location
  • IP65
  • 1 Year Limited Warranty
