SPEC SHEET

WMCS5-DL-MCT-BK-DD

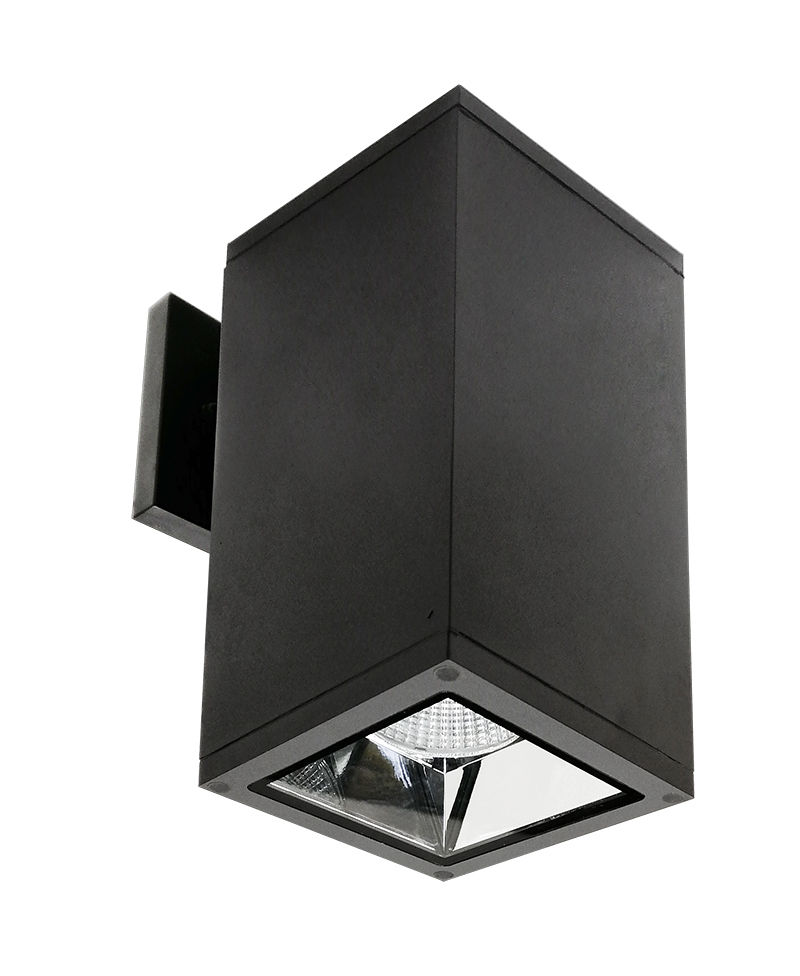

5" LED MCT Square Wall Mount Cylinder Lights, 20W, 3000K/4000K/5000K

Technical Specs

  • :: Voltage: 120-277V AC
  • :: Power Factor: >0.95
  • :: Wattage: 20W
  • :: Efficacy: 80 LPW
  • :: THD: <20%
  • :: Housing: Die-cast Aluminum & Glass
  • :: Finish: Black, Bronze, Brushed Nickel & White
  • :: Maximum Ambient Temperature: -68°F to 104°F
  • :: Suitable for Wet Location
  • :: Dimming: (Dual Function) Triac Dimmable at 120V & 1-10V Dimming at 120-277V
  • :: Total Lumens: 1600LM
  • :: Color Temperatures: 3000K/4000K/5000K
  • :: Multi CCT (Selectable Switch on the Bottom of the Arm, Protected by Silicon Cover to be Waterproof)
  • :: Color Rendering Index: CRI ≥ 80
  • :: Rated life: 70,000 hrs
  • :: Beam angle: 45º

Applications

  • :: Ideal for general site lighting, walkways and stairways, alleys, loading docks, doorways, pathways and parking areas

Features

  • Wet Location
  • Dimming 0-10V
  • Dimmable
  • ETL Listed
  • MCT3
