WMCS5-DL-MCT-BR-DD

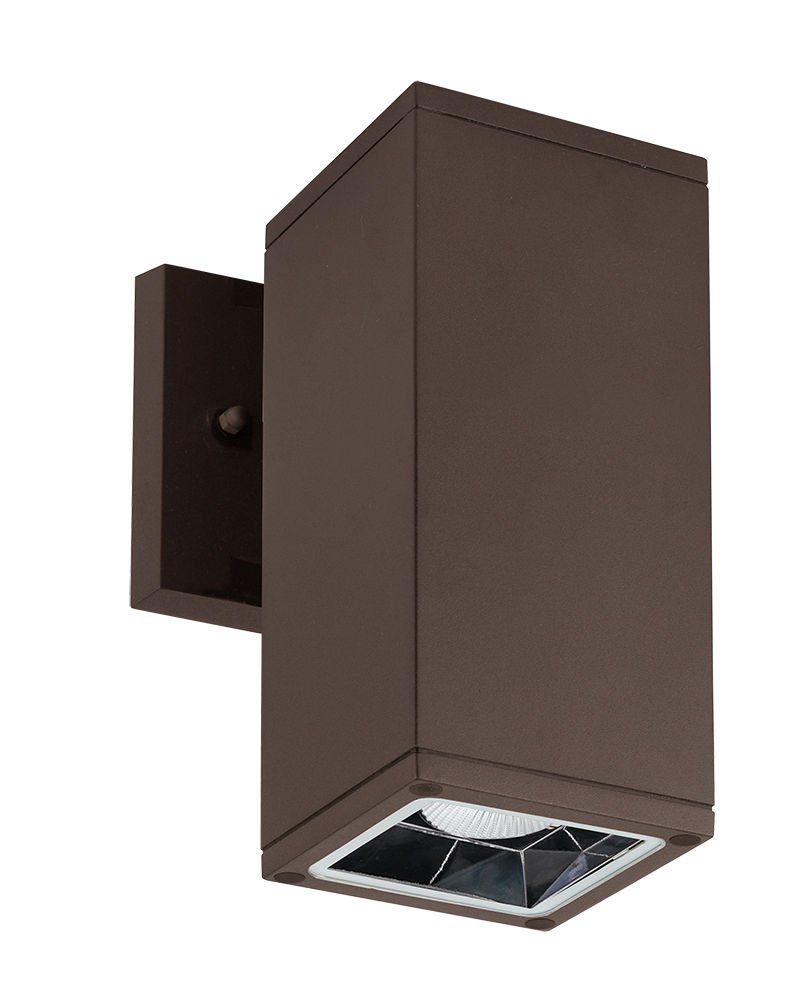

WMCS5 - 5" LED MCT Square Wall Mount Cylinder Lights, 20W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V AC
- :: Power Factor: >0.95
- :: Wattage: 20W
- :: Efficacy: 80 LPW
- :: THD: <20%
- :: Housing: Die-cast Aluminum & Glass
- :: Finish: Black, Bronze, Brushed Nickel & White
- :: Maximum Ambient Temperature: -68°F to 104°F
- :: Suitable for Wet Location
- :: Dimming: (Dual Function) Triac Dimmable at 120V & 1-10V Dimming at 120-277V
- :: Total Lumens: 1600LM
- :: Color Temperatures: 3000K/4000K/5000K
- :: Multi CCT (Selectable Switch on the Bottom of the Arm, Protected by Silicon Cover to be Waterproof)
- :: Color Rendering Index: CRI ≥ 80
- :: Rated life: 70,000 hrs
- :: Beam angle: 45º
Applications
- :: Ideal for general site lighting, walkways and stairways, alleys, loading docks, doorways, pathways and parking areas
