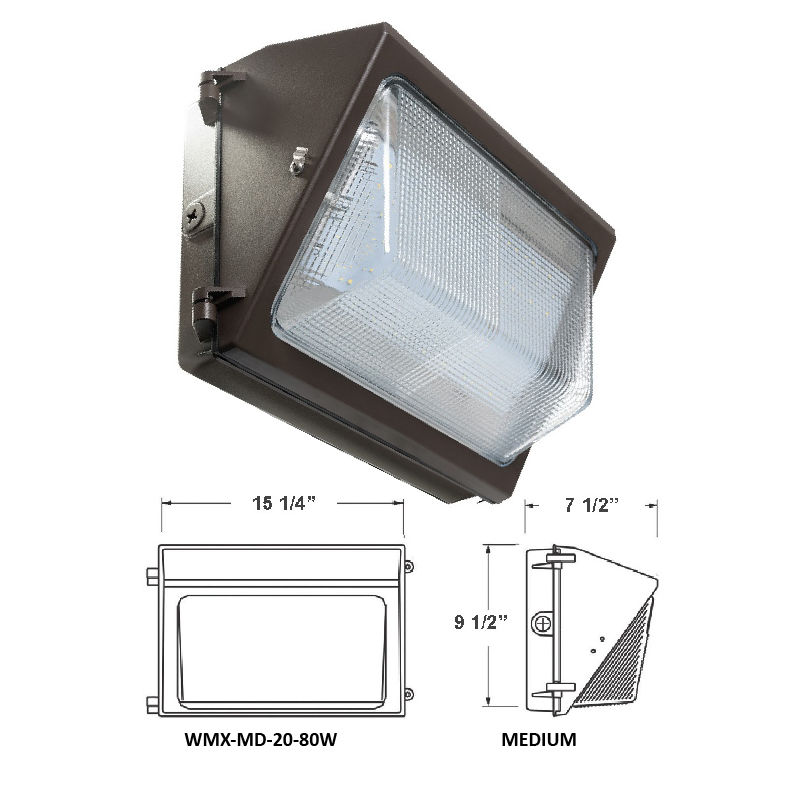

WMX-MD-20-80W-30K

LED Multi-Power Non-Cutoff Wall Packs

Technical Specs

  • ::Technical Specs
  • :: ADC12 Aluminum Heat Sink, Outdoor Powder Coating
  • :: Multi-Power Switch is inside the Fixture
  • :: Same footprint as traditional HID wall packs
  • :: Prismatic Borosilicate Glass Lens
  • :: Input Voltage: 120-277V AC 50/60Hz
  • :: Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
  • :: CRI: >70
  • :: Power factor: >0.9
  • :: Operating Temperature: -40°F ~ 104°F
  • :: 70,000 hour rated life
  • :: 7-year warranty
  • :: IP rating: IP65, Wet Locations

Applications

  • :: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
  • :: Replace existing HID wall packs
  • :: Great for use with photocell

Features

  • UL Listed
  • DLC Listed
  • Dimming 0-10V
  • IP65
  • Wet Location
  • 7 year warranty

OPTIONS
