WMXPRO-LG-50-120W-MCTP

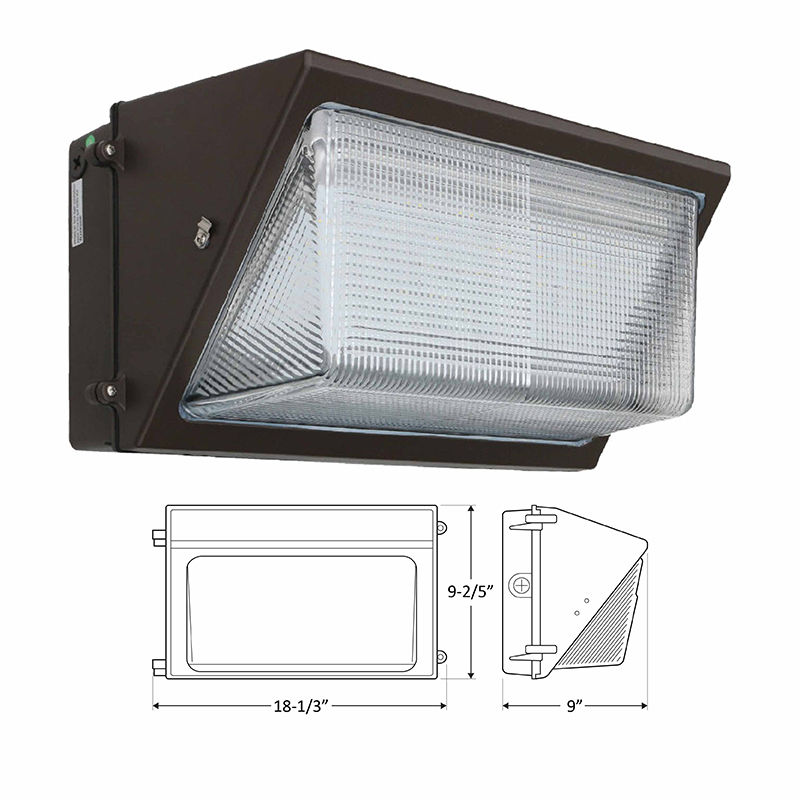

LED Multi-Power & Multi-CCT Non-Cutoff Wall Packs, 50W/80W/100W/120W, 3000K/4000K/5000K/5700K

Technical Specs

  • :: Input Wattage: 50W/80W/100W/120W
  • :: Input Voltage: 120-277V AC 50/60Hz
  • :: Input current: 1.4 A
  • :: Power factor: >0.9
  • :: Efficacy: 130 LPW
  • :: ADC12 Aluminum Heat Sink, Outdoor Powder Coating
  • :: Lens: Prismatic Borosilicate Glass Lens
  • :: Same Footprint as Traditional HID Wall Packs
  • :: Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
  • :: Mounting: Wall Mounting
  • :: Operating Temperature: -40°F ~ 104°F
  • :: Lifespan: 70000 Hrs.
  • :: IP rating: IP65, Wet Locations
  • :: Dimming: 0-10V Dimming
  • :: Chip: Philips Lumileds LEDs
  • :: Multi Power & CCT (Switches are inside fixture
  • :: Total Lumens: 16500LM Max.
  • :: Color Temperature: 3000K/4000K/5000K/5700K
  • :: CRI: >70

Applications

  • :: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
  • :: Replace existing HID wall packs
  • :: Great for use with photocell

Features

  • UL Listed
  • DLC Listed
  • Dimming 0-10V
  • IP65
  • Wet Location
  • 7 year warranty

ACCESSORIES

Product NameDescription
image description
WML-SH3
image description

SPEC

image description

MANU

Shield for WML for 120W

OPTIONS
