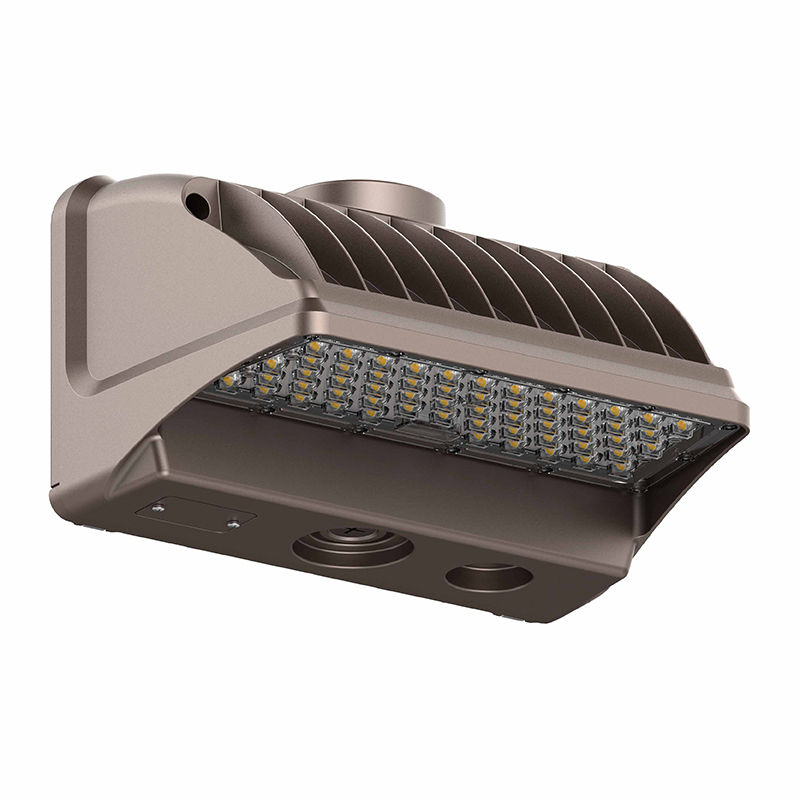

WPX-80W-MCTP
Power Adjustable LED Wall Mount Lighting
Technical Specs
- :: Voltage: 120-277V AC 60Hz
- :: Wattage: 20W/40W/60W/80W
- :: Power Factor: >0.95
- :: Efficacy: 135 LPW
- :: Die-Cast Aluminum With Powder Coat Finish (Dark Bronze)
- :: High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
- :: Operating Temperature: -4ºF to 104ºF
- :: IP 65
- :: Wet Location
- :: 7-Year Warranty
- :: Full Cutoff, Dark sky Compliant
- :: Dimming: 0~10V Dimmable
- :: Multi CCT and Power (Switches are inside fixture)
- :: The Type III Distribution Is Used for Wide WalkWays, on Ramps and Entrance Roadways, As Well As Other Long, Narrow Lighting
- :: Total Lumens: 5670LM Max.
- :: Color Temperatures: 3000K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Rated life: 70,000 Hrs
Applications
- :: Ideal as exterior or interior LED Lighting for hotels, garages, commercial buildings, public areas, schools and hospitals etc.
- :: Replace existing HID flood lights/ wall packs
Features
OPTIONS
