XT-EL1RCA-EM

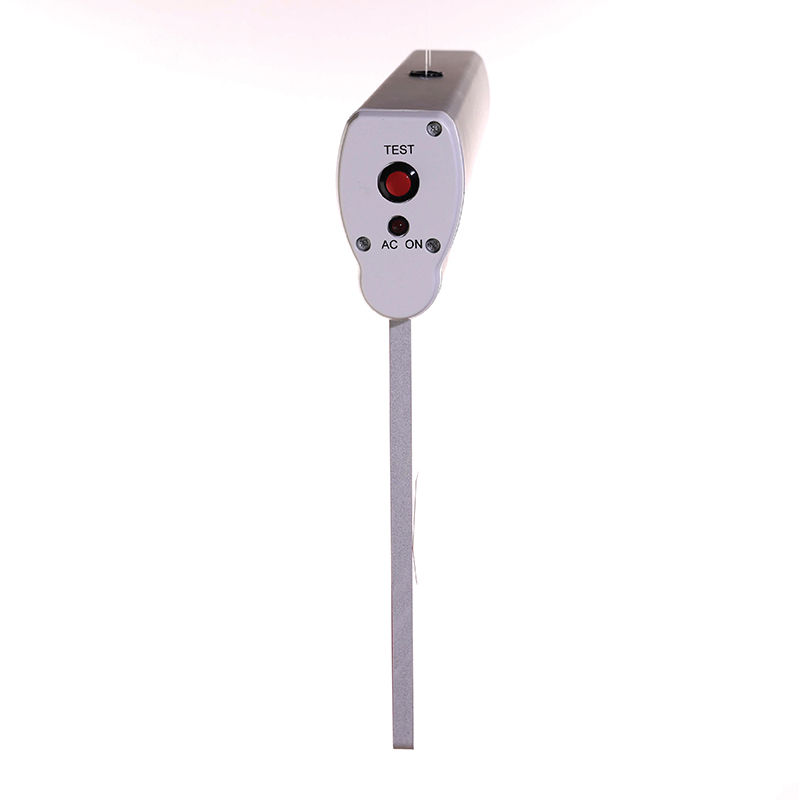

XT-EL1RCA-EM - Edgelit LED Sign with Aluminum Housing

Technical Specs

  • :: Aluminum housing with acrilic (mirror) panel
  • :: Single Face. Optional double face plate available (See accessories)
  • :: Built-In 34.8V 400mAh Nickel Cadmium Battery for minimum 90 minutes emergency operation
  • :: Maximum 24 hours for full recharge time
  • :: Universal Ceiling & Wall Mounting Plate allows top, back or end installation
  • :: Universal J-Box Mounting Pattern
  • :: Test switch and charge indicators
  • :: Removable directional indicators (Chevrons)
  • :: Red Letters: 6" Height with a 3/4" stroke
  • :: Lumens: 13LM
  • :: Wattage: 2.5W
  • :: Voltage: 120V-277V AC Dual Voltage Operation
  • :: Power Factor: >0.90
  • :: Color Temp: 1001K
  • :: Rated Life: 90-min rated battery
  • :: 3-year warranty

Applications

  • :: Ideal for every exiot door, corridor intersections, exit stairways or ramps and such other locations.

Features

  • 3 year warranty
  • UL Listed
