PML-L-MCT-ORB

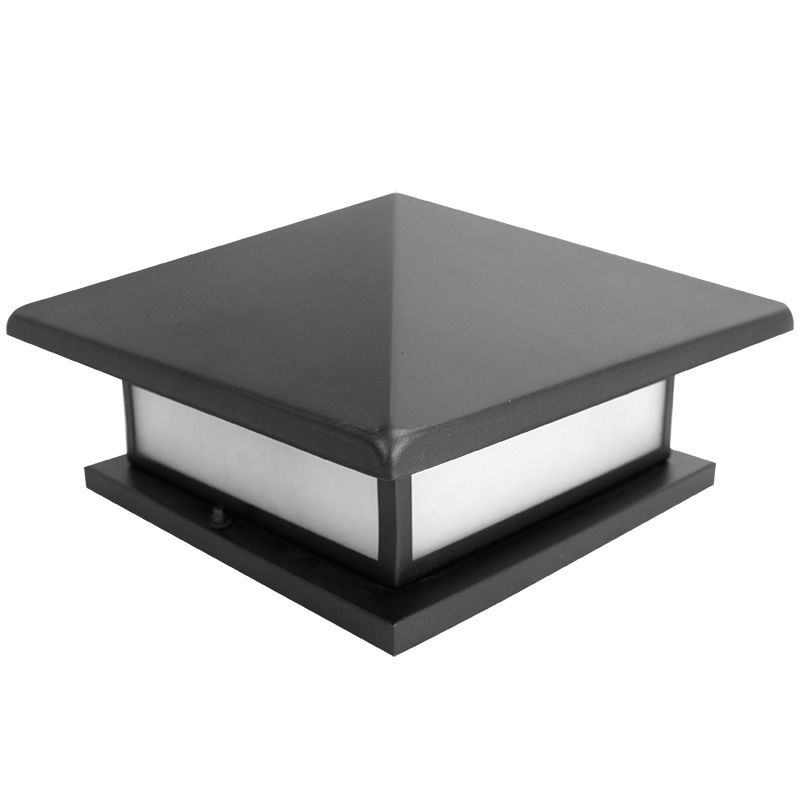

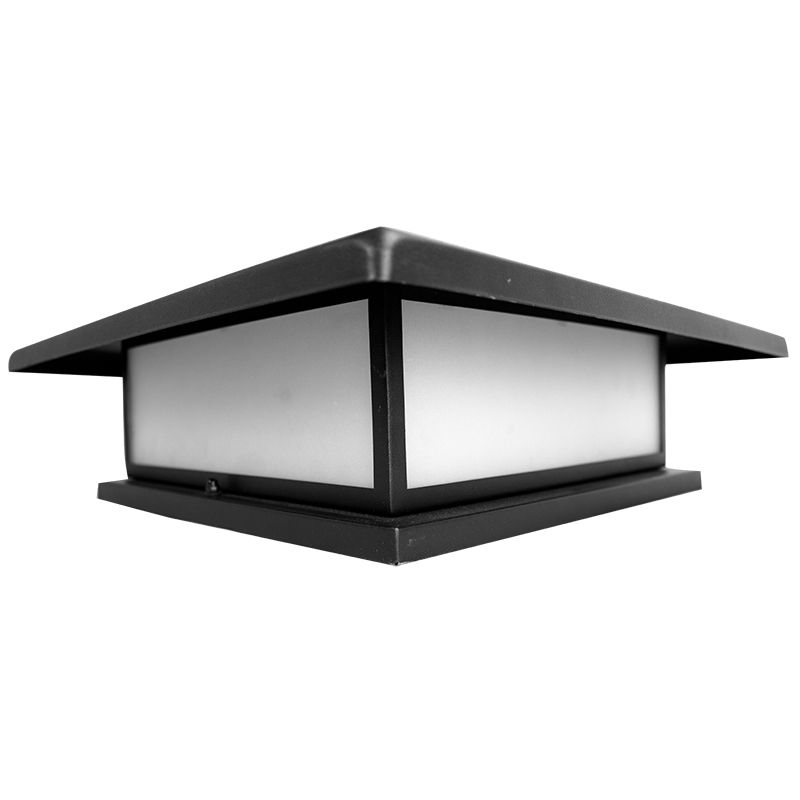

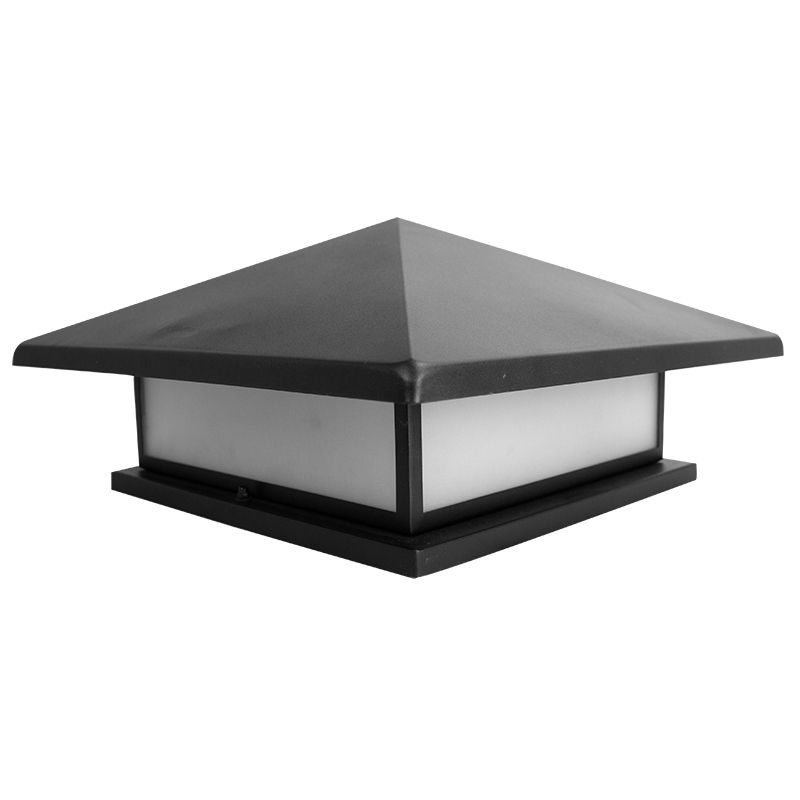

Selectable CCT Pier-Mount Lights, 18W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120V AC 60Hz
- :: Wattage: 18W
- :: Power Factor: >0.90
- :: Efficacy: 25 LPW
- :: Back plate: Steel with Mounting/Gasket Installed
- :: Oil-Rubbed Bronze
- :: Frosted Glass Lens
- :: Operating Temperature: -4ºF to 49ºF
- :: IP44 Suitable For Wet Location
- :: 7-Year Warranty
- :: Multi-CCT Switch is Inside Fixture
- :: Total Lumens: 460LM
- :: Color Temperatures: 3000K/ 4000K/ 5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 90°
- :: Rated Life: 70,000 Hrs
Applications
- :: LED Pier Mount Lights With Frosted Lens Is Ideal For General Site Lighting, Loading Docks, Doorway, Pathway And Parking Areas.
